DSO153 Digital Oscilloscope 2 in 1 Multi-function Portable Mini Signal Generator 1M Bandwidth

DSO153 Digital Oscilloscope 2 in 1 Multi-function Portable Mini Signal Generator 1M Bandwidth

• FNIRSI DSO153 Portable Digital Oscilloscope 1MHz (+ P6100 Probe and Probe Adapter)

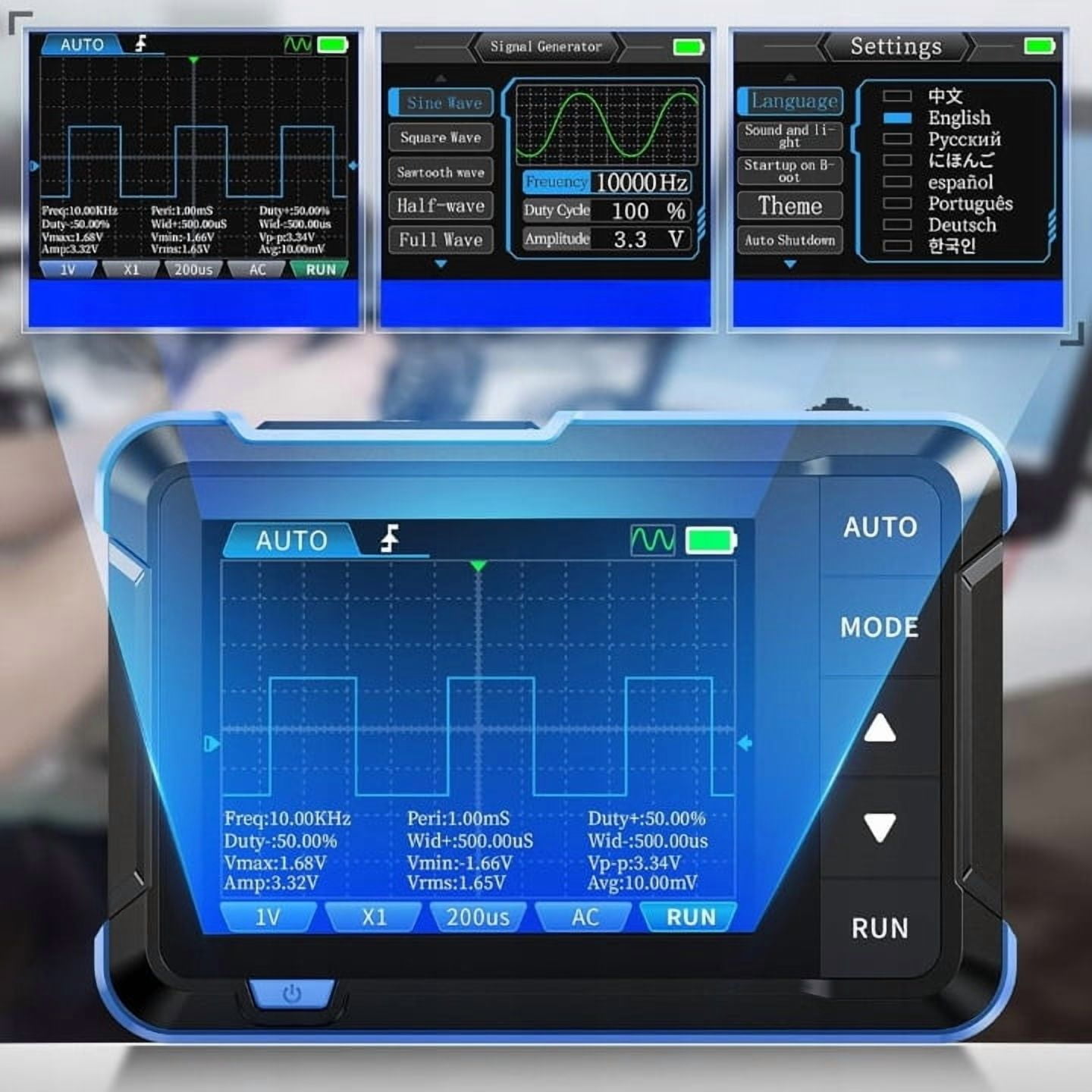

  ✅ 2in1 Fnirsi DSO153 is a compact digital oscilloscope and signal generator that can accurately analyze analog and digital signals with a real-time sampling rate of 5MS/s and a bandwidth of 1MHz.

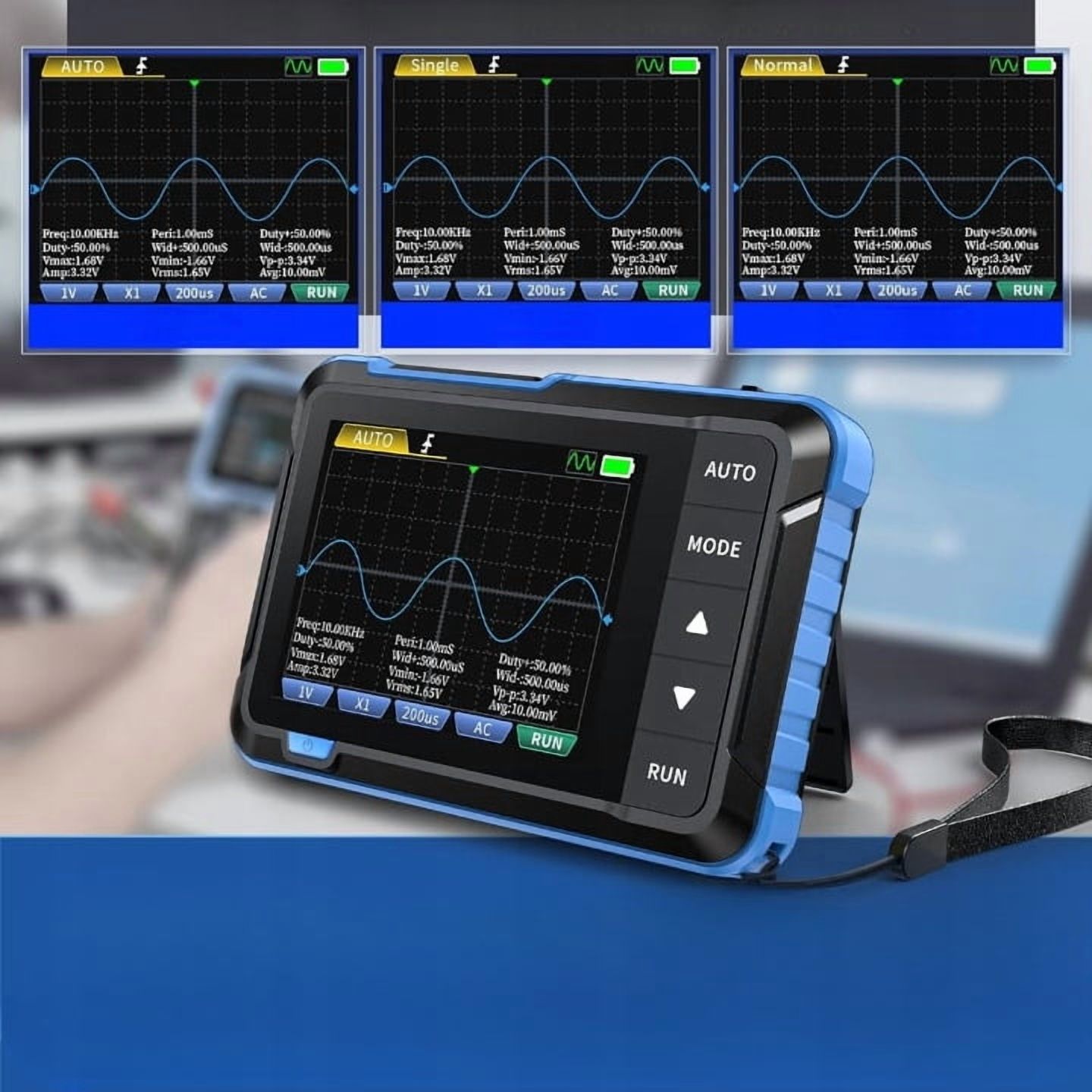

  ✅ It has 3 mode trigger functions: single, normal and automatic, which can flexibly adapt the oscilloscope to different signals.

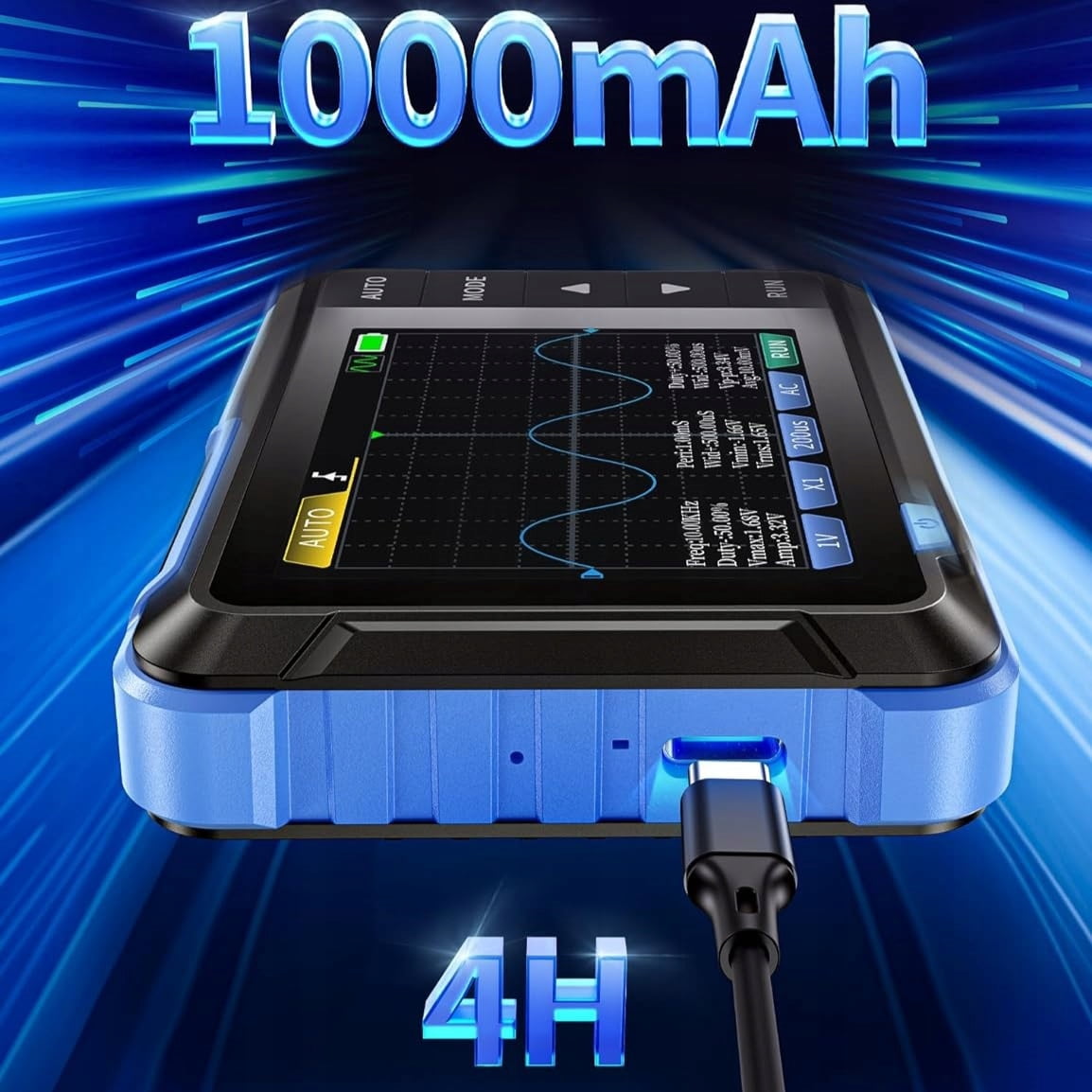

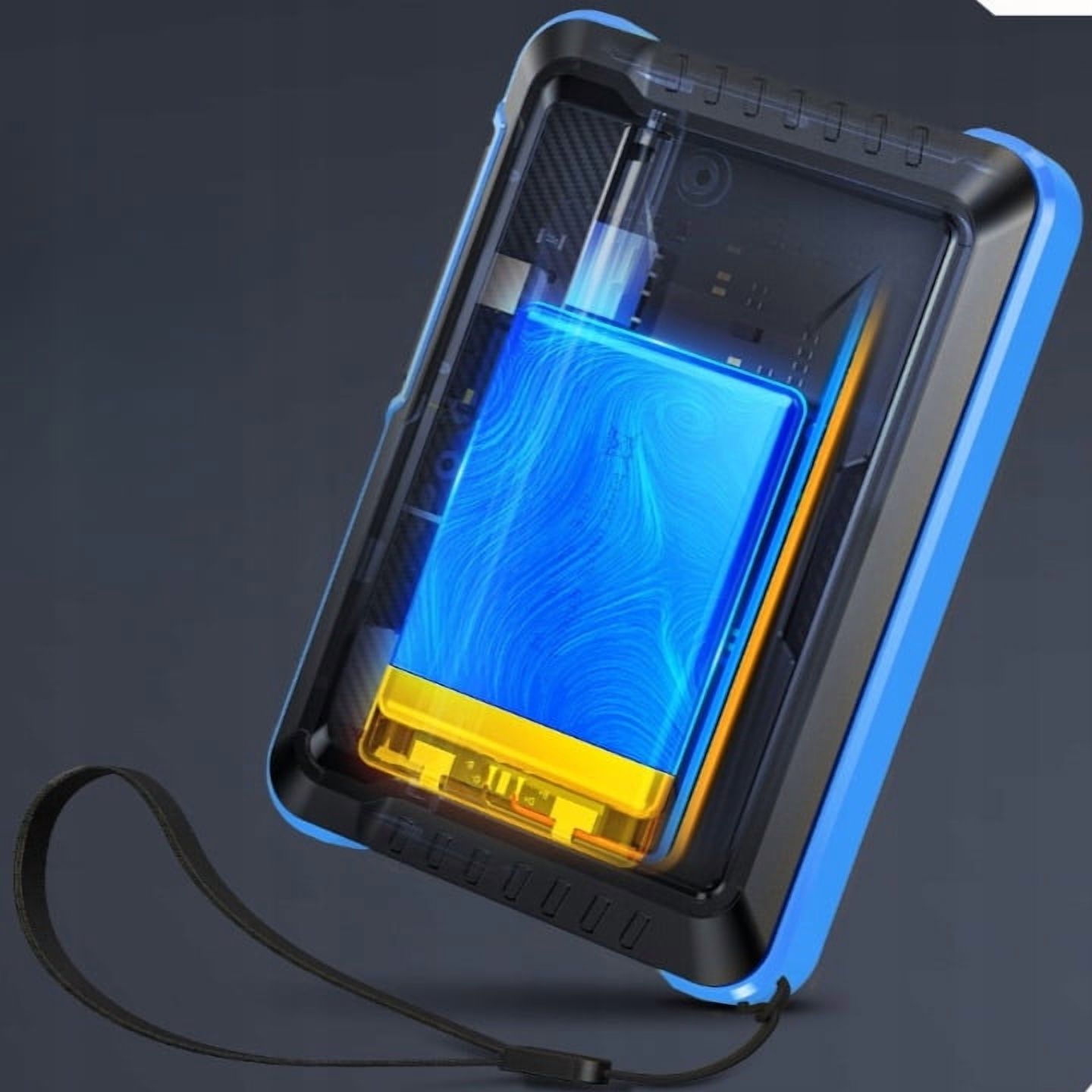

  ✅ The instrument is equipped with a 2.8-inch color LCD display and a built-in 1000mAh lithium battery, providing users with efficient work, portability, and thus better functions.

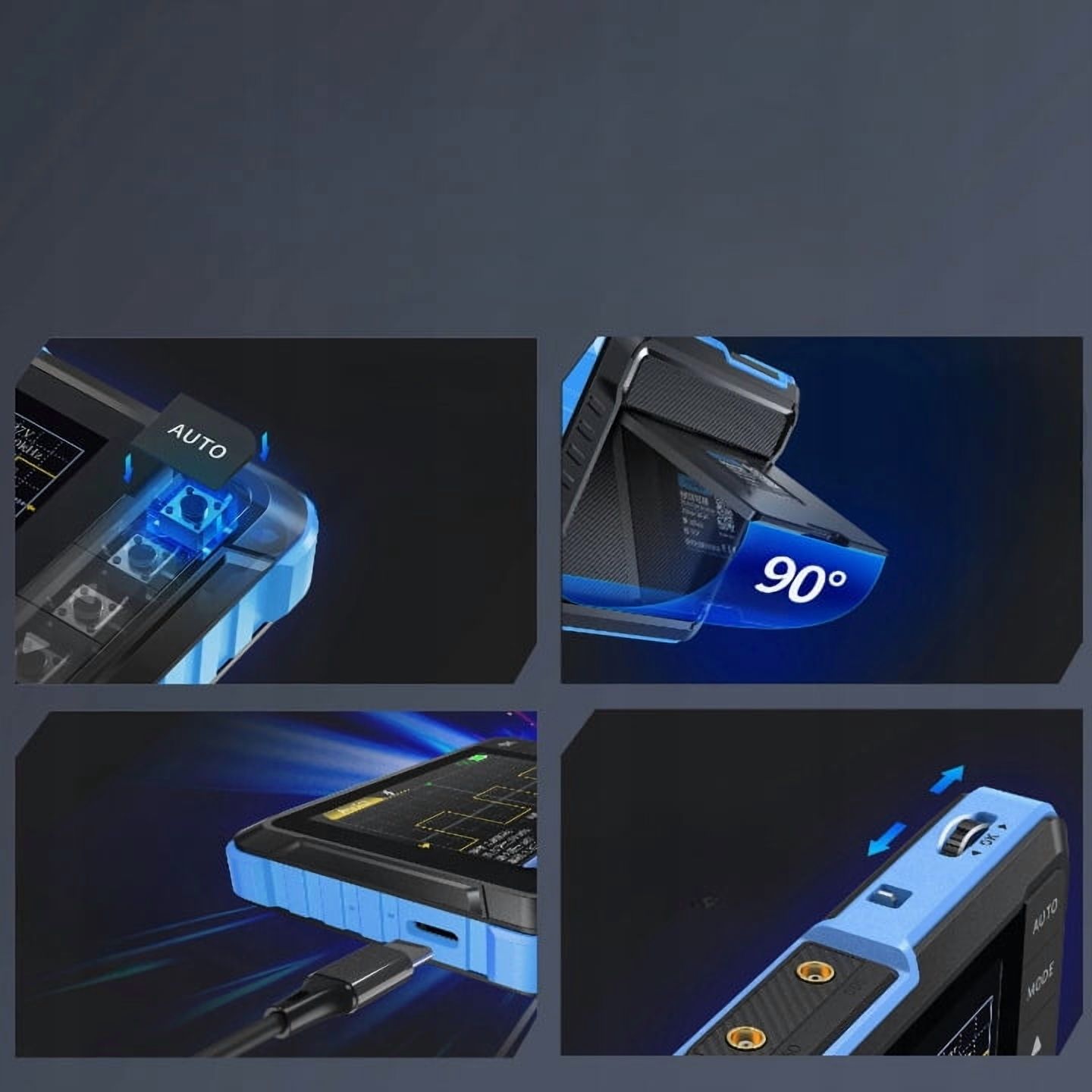

  ✅ Fnirsi DSO153 is charged via a USB-C cable.
  ✅ The device is ideal for people who value convenient equipment, such as: when DIY, repairing cars or household appliances. It is not only suitable for buildings, but also for outdoor applications, providing accurate measurements under various conditions.

• ➡Product Features:

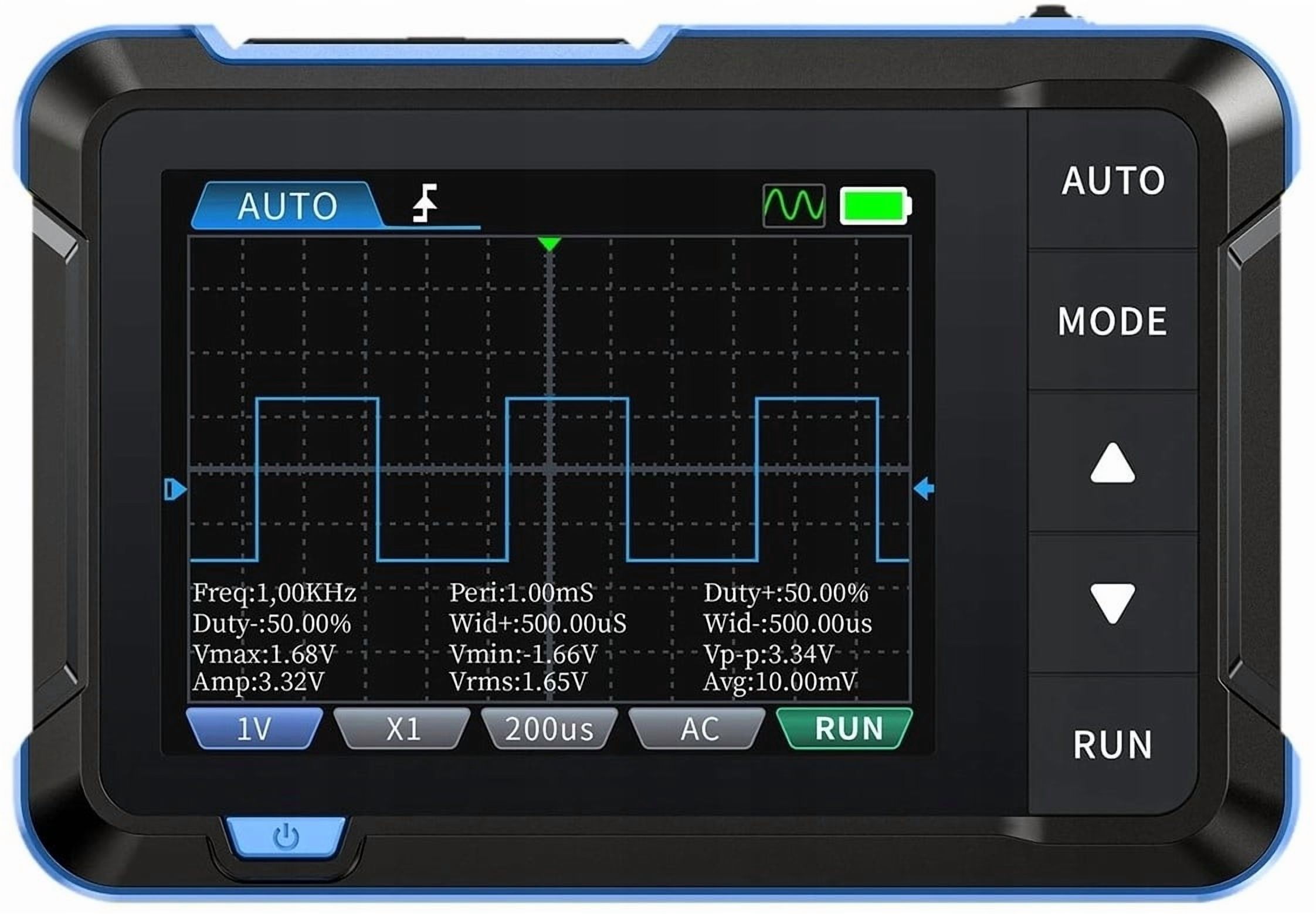

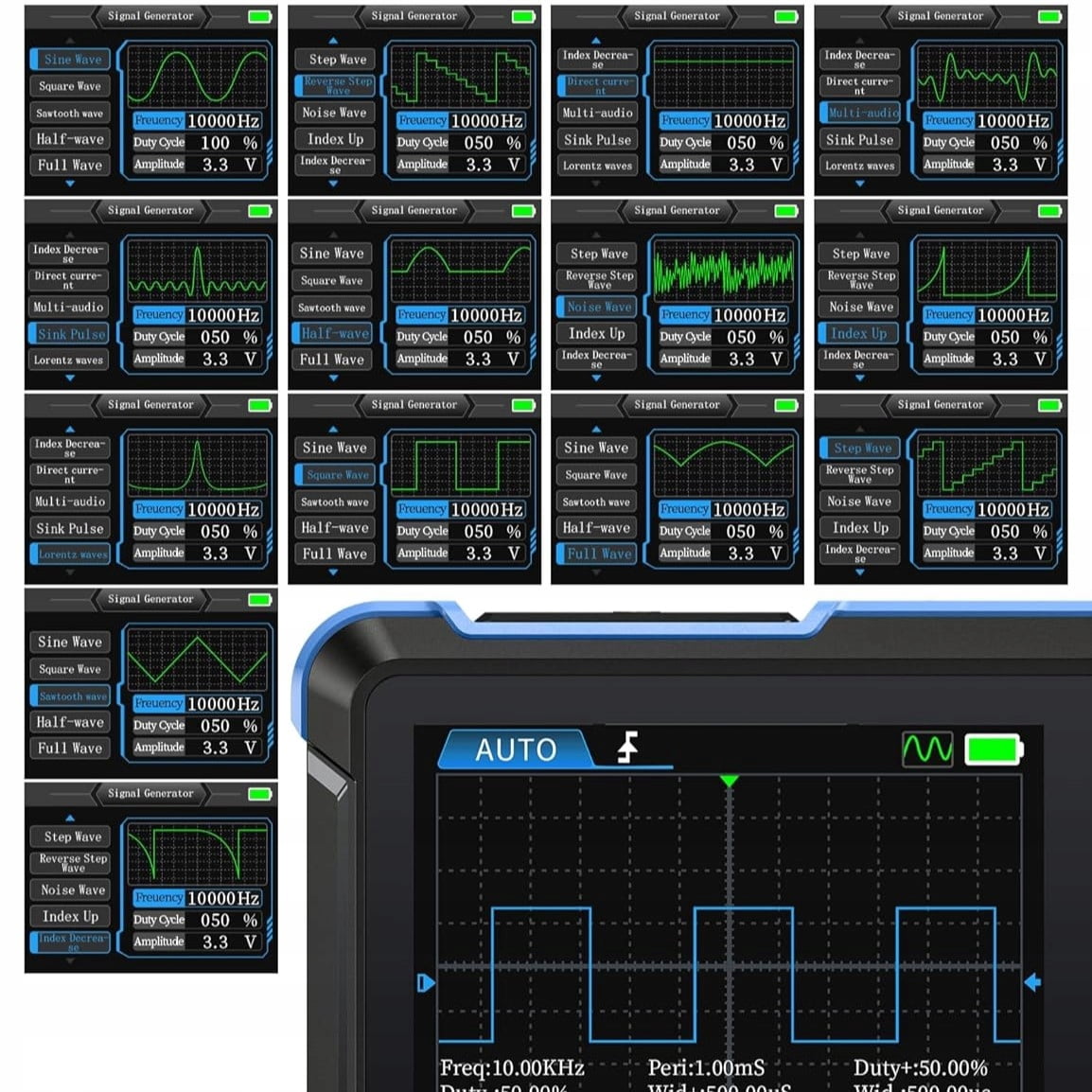

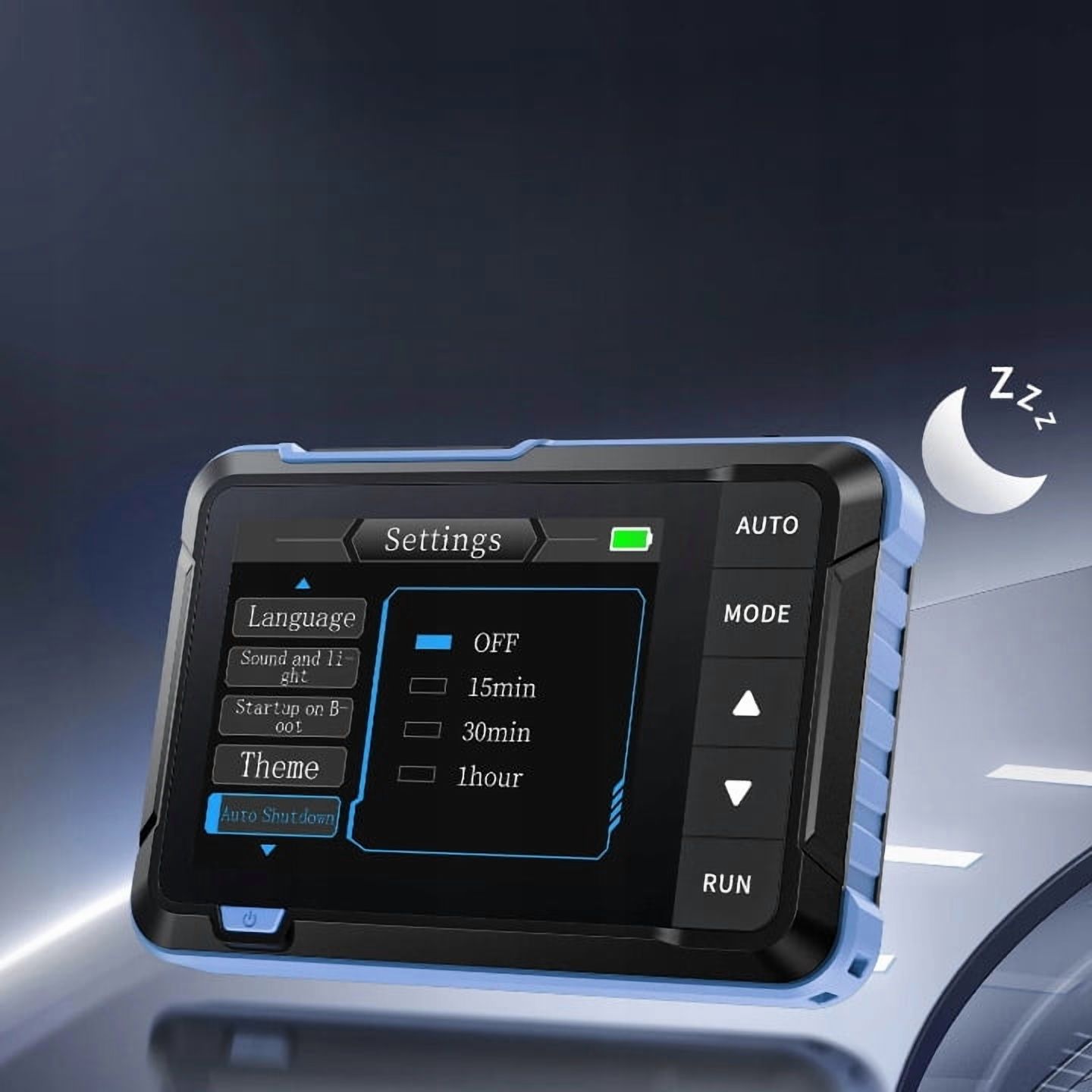

  The maximum input voltage for 1:1 probe is 80Vpp, and the maximum input voltage for 1:10 probe is 800Vpp. Automatic measurement function Signal generator function (10 kHz) Clear and colorful HD LCD 2.8 inch display Bandwidth up to 1 MHz Sampling rate 5 MSa/s Measure analog and digital signals Trigger in single, normal and automatic modes Has USB-C connector for charging and updating Auto power off function

• ➡Specifications:
  Model: DSO153
  Number of channels: 1
  Bandwidth: 1 MHz -
  Subwoofer input voltage: X1: +/-40V (Vpp: 80V)
  X10: +/-400V (Vpp: 800V)
  Sampling rate: 5 ms/s
  Display: Color 2.8 inch LCD HD 320x240
  Battery: Li-ion 1000 mAh
  Working time: Approx. 4 hours (when fully charged)
  Trigger function: Single, Normal, Auto
  Vertical sensitivity: 10mV/div - 10V/div
  Time base adjustment: 500ns - 20S
  Connection mode: AC/DC
  Charging voltage: 5 V/1 A USB
  Dimensions: 99x68.3x19.5 mm
  Weight: 100 g

• ➡ Package Contents:
  DSO-153 Oscilloscope
  Measurement cable P6100
  Probe P6100
  Probe adapter
  USB cable
  Lanyard

  Info! Colors in photos may differ from actual colors due to the type, intensity and angle of light and monitor settings.
